B Thermocouple Electric Furnace Temperature Sensor

B Thermocouple Electric Furnace Temperature Sensor

FOB Price:

US 8.5-16.5 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

2000 Piece/Pieces per Week

Port:

Shanghai/Ningbo

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram,Escrow/Paypal

Brand:

Laiyuan

Products Model:

LY-TS-15044

Products Details
Company Profile

Quick Details

Brand Name: Laiyuan

Model Number: LY-TS-15044

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: Carton box for B Thermocouple Electric Furnace Temperature Sensor
Delivery Detail: 7 days for B Thermocouple Electric Furnace Temperature Sensor

Specifications

B Thermocouple Electric Furnace Temperature Sensor

Product Description

Mineral Oxide Thermocouples for a wide range of industrial applications :

Temperature limits:

-0 ... +350°C for type T
-0 ... 750°C for type J
-0 ... 900°C for type E
-0 ... 1300°C for type K (see table for sheath diameters)
For type T: ± 1°C (-40 ... 133°C) ± 0.0075 [t] (t > 133°C)
For type J, E, K: ± 2,5°C (-40 ... 333°C) ± 0.0075 [t] (t > 333°C)
Mineral insulated (MgO) thermocouple element and continuous metal sheath

-0 ... +350°C for type T

-0 ... 750°C for type J

-0 ... 900°C for type E

-0 ... 1300°C for type K (see table for sheath diameters)

For type T: ± 1°C (-40 ... 133°C) ± 0.0075 [t] (t > 133°C)

For type J, E, K: ± 2,5°C (-40 ... 333°C) ± 0.0075 [t] (t > 333°C)

Mineral insulated (MgO) thermocouple element and continuous metal sheath

Application versatility Of Electric Furnace Temperature Sensor :

B Thermocouple Electric Furnace Temperature Sensor .

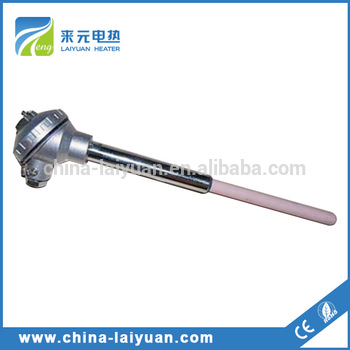

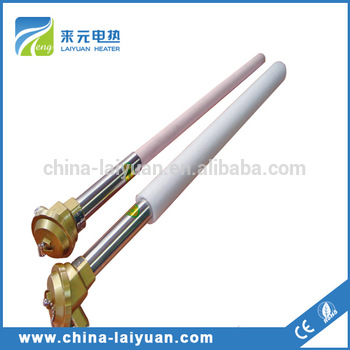

The probe is 6 (150 mm) long and 20mm in diameter. The transition section is 0.5 in diameter and .Both tip and transition section are made of ceramic. Maximum working temperature: 1800C .

Conductor	Wire	Accuracy
material	Calibration	Class		Class
		Accuracy	Temperature range()	Accuracy	Temperature range()
Ni Cr-Ni Si	K	1.5	-1040	2.5	-1040
Ni Cr Si-Ni Si	E	or	-1140	or	-1240
NiCr-Konstantan	N	0.4%t	-840	0.75%t	-840
Fe-Konstantan	J		-790		-790
Cu-Konstantan	T	1 or	-390	1.5 or	-390
Cu-Konstantan	T	0.4%t	-390	0.75%t	-390
Pt Rh 10-Pt	S	1or	0-1600	1.5	0-1600
PtRh 13-Pt	R	1+t-1100× 0.003	0-1600	or	0-1600
Pt Rh30-PtRh 6	B			0.25%t	600-1700

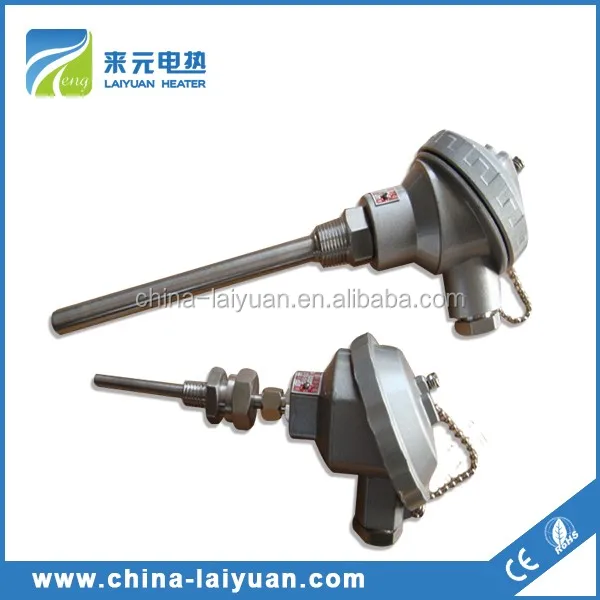

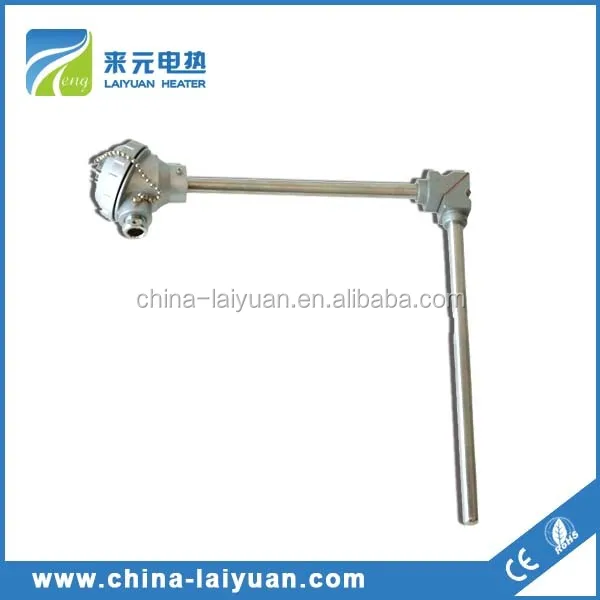

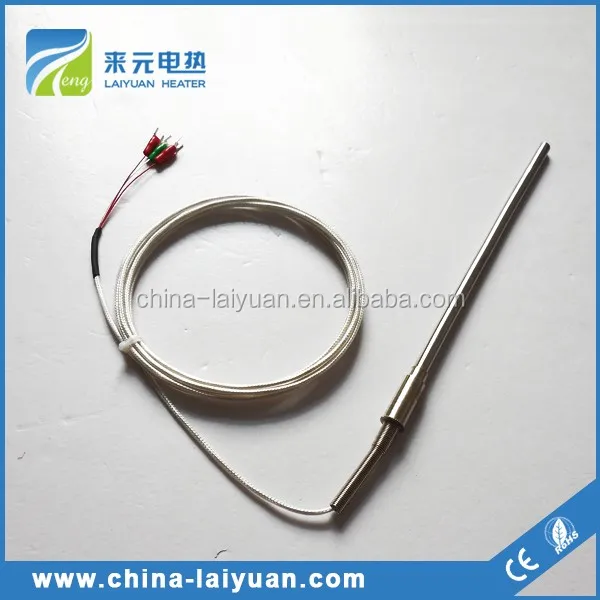

Features Of Electric Furnace Temperature Sensor :

Type	N,S,B,K,J,PT100,R
Diameter of Tube	6mm,8mm,10mm,12mm,14mm,16mm etc
Length of Tube	110mm (customized)
Protection Tube Material	Copper plating with nickel, Stainless steel
Hot Junction	Grounded, Ungrounded
Temp.Range	-200~1300 ℃ (N/K) , 800~1300℃(S/B),-200~500 ℃(PT100)
Thermocouple Head	KSE,KSY etc
